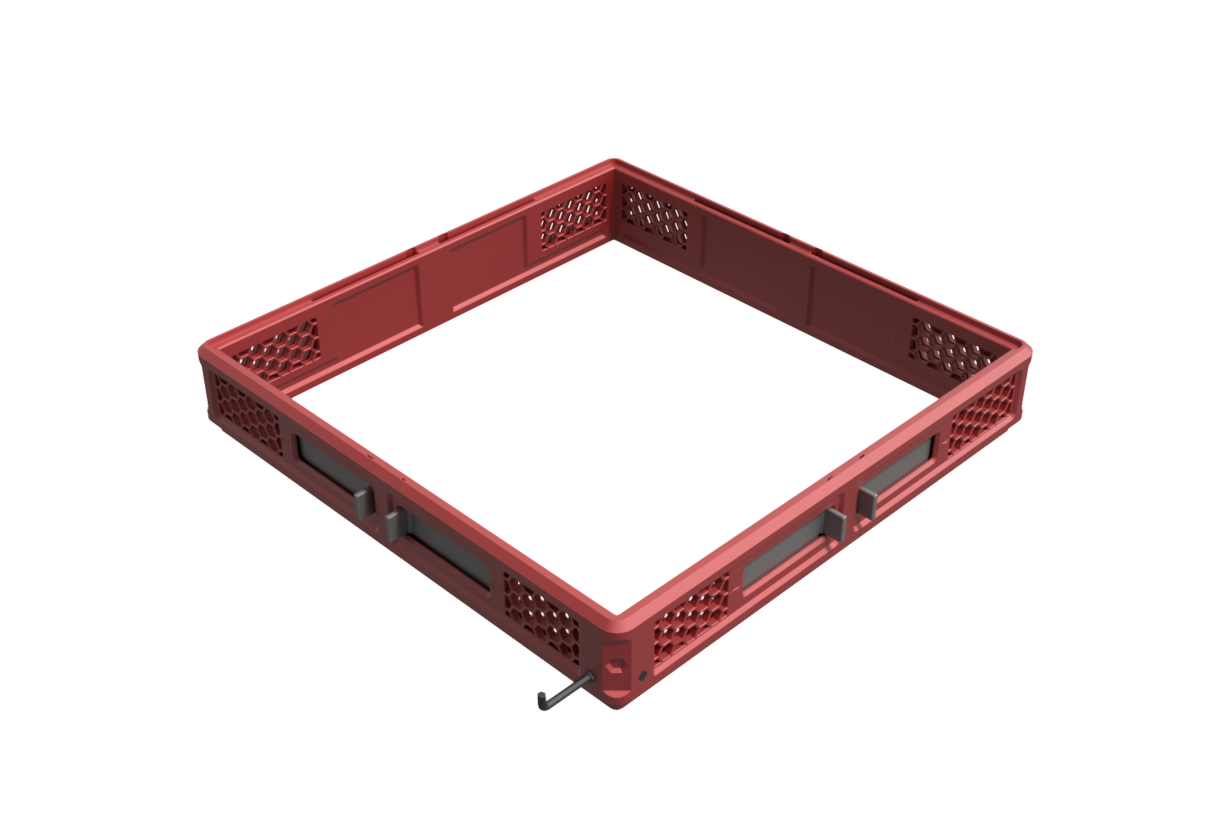

CREALITY K1 MAX RAISER / RISER / TOP COVER / UPGRADE (VERSION 1)
Upgrade your Creality K1 Max 3D printer with the ultimate lid extension – no supports needed!
Our lid extension is easy to install and requires no supports. Effortlessly enhance your printer’s capabilities, giving you the flexibility to print taller projects with ease. Perfectly designed for the Creality K1 Max model, this upgrade combines functionality with a seamless fit.
GET STL-FILES ON CREALITY CLOUD
CREALITY K1 MAX RAISER / RISER / TOP COVER (UPGRADE) - VERSION 1
OUR STL-FILES OFFERS YOU:
- Perfect Fit on Creality K1 Max
- Enhanced Functionality
- Improved Print Quality
- Easy Installation
- Noise reduction
- More moving space for the Bowden tube

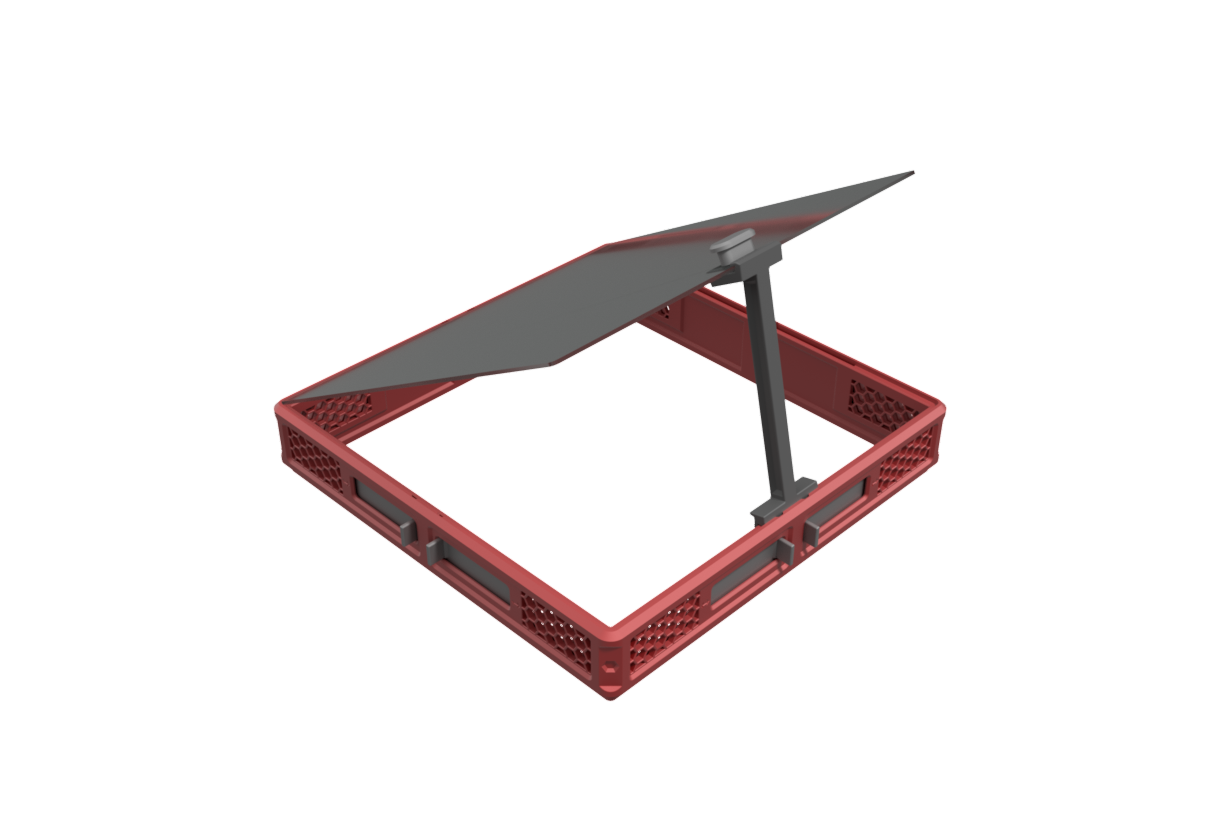

- The glass holder makes it easy to work on the extruder or change the filament
- Air supply regulation & indirect control of the temperature
- Bowden tube passage to the back and side (you can choose)
- Detailed assembly instructions are supplied as a download
- Detailed print settings are supplied as a download

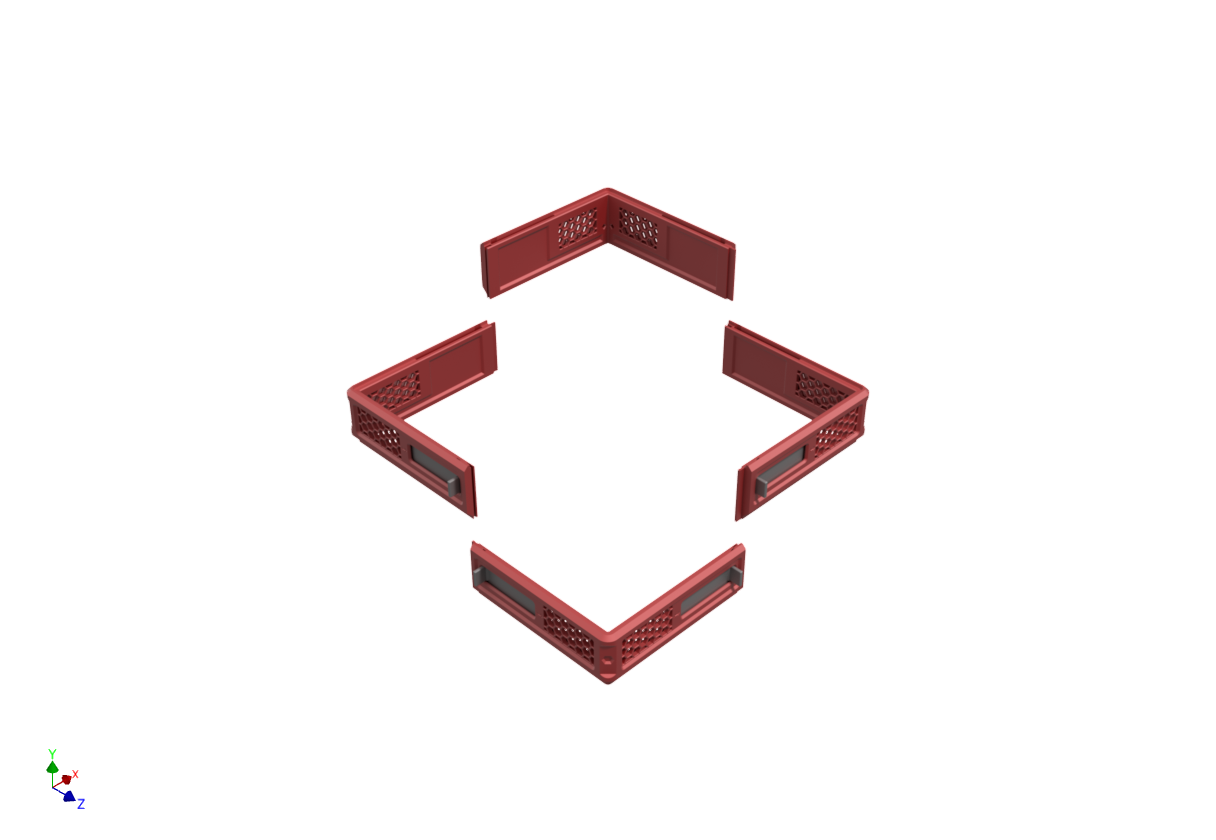

THE FOLLOWING PARTS MUST BE PRINTED:

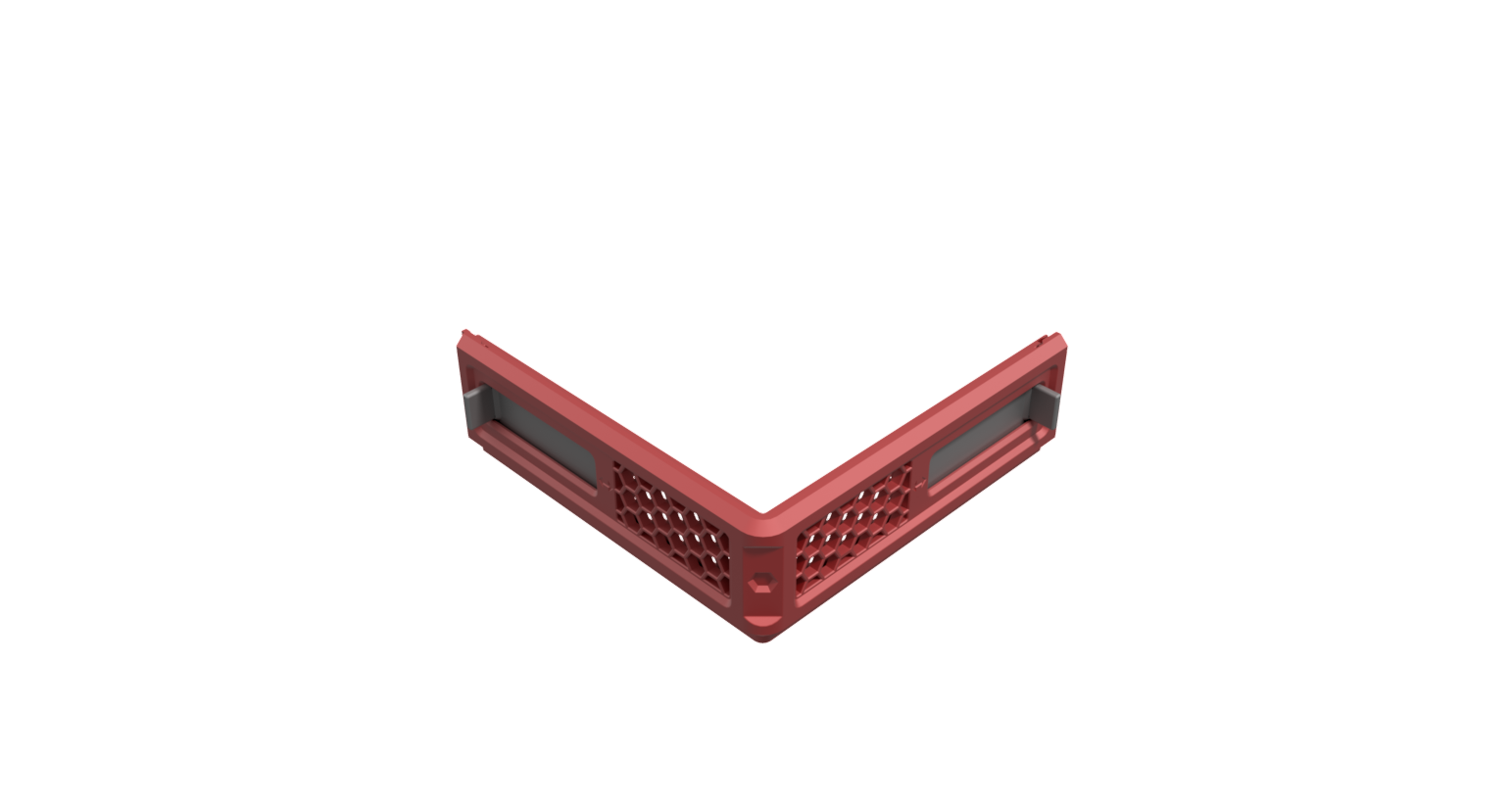

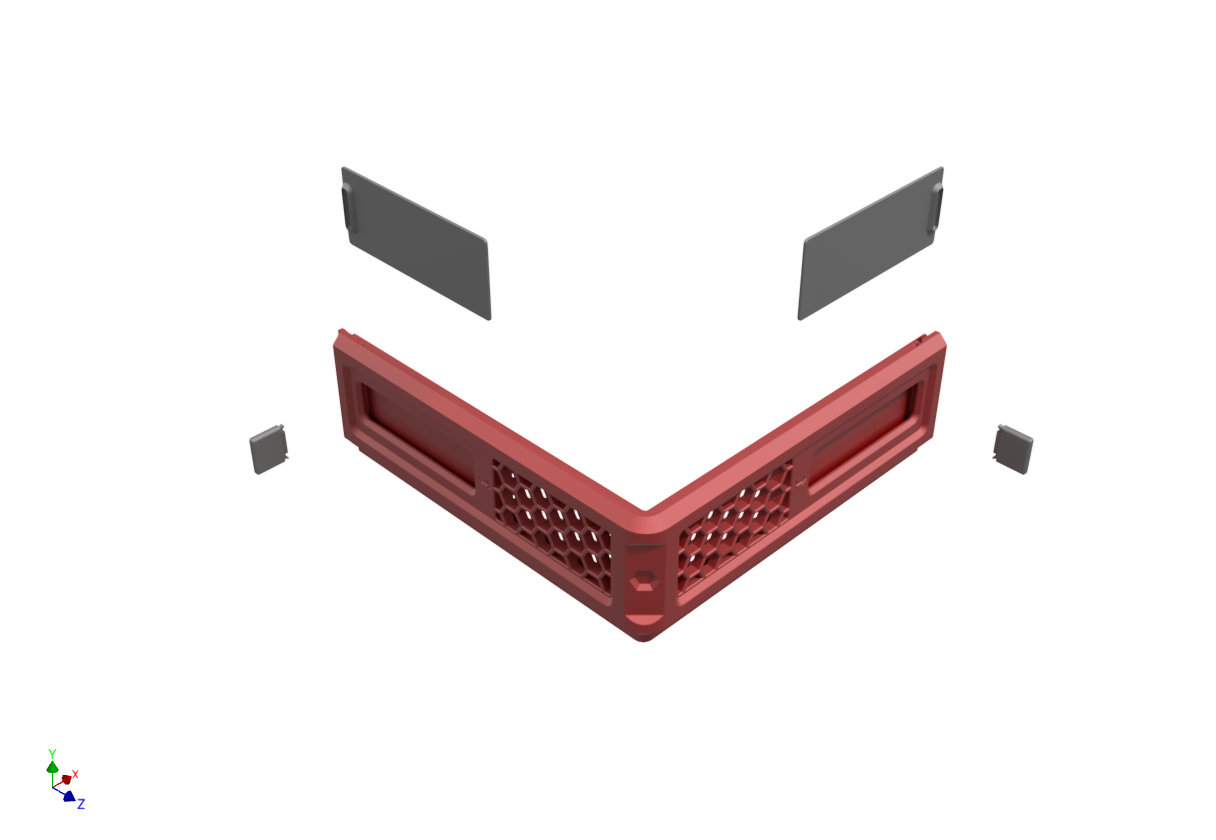

- PART_RAISER_K1-MAX (3 times)

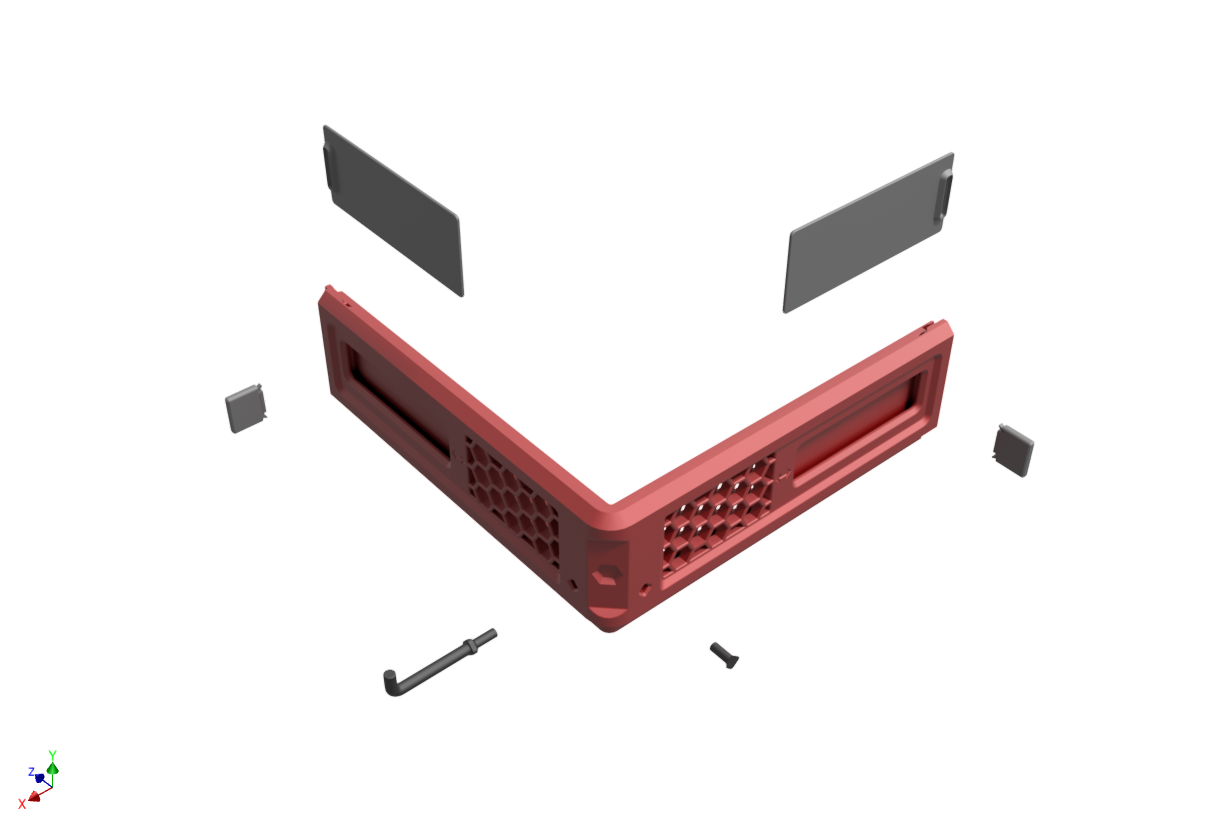

- PART_BACK-RIGHT_RAISER_K1-MAX (1 time)
- GLASS_HOLDER_K1-MAX (1 times)
- SLIDER_K1-MAX (8 times)
- SLIDING-CONTROLLER_WITHOUT_LOGO_K1-MAX (8 times) or SLIDING-CONTROLLER_WITH_LOGO_K1-MAX (8 times)

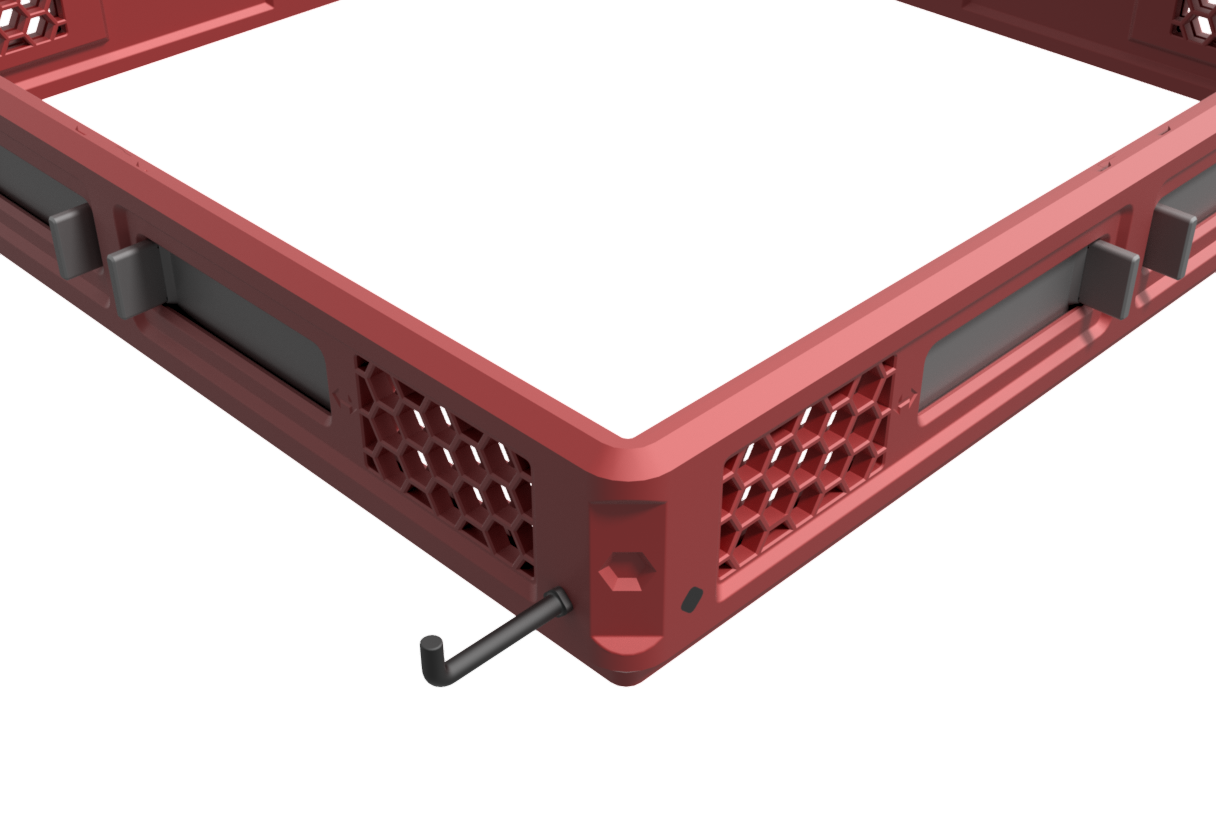

- PLUG (1-2 times)
- PLUG_WITH_HOLDER (1 time)
| Printing material | PLA / PLA+ / PETG / ABS / ASA (heat-resistant filaments are recommended, but not absolutely necessary) |
|---|---|
| Nozzle | 0,4 mm |
| Infill | 15% |
| Layer height | 0,2 mm |
| Walls | 2 |
| Support structure | none support needed (we have modeled the supports for you in the model, these must be removed with a click after printing) |
| Recommendation | BRIM with 5 lines, 100mm/s print speed (Attention! CONTROLLER with minimum 8 lines) |
