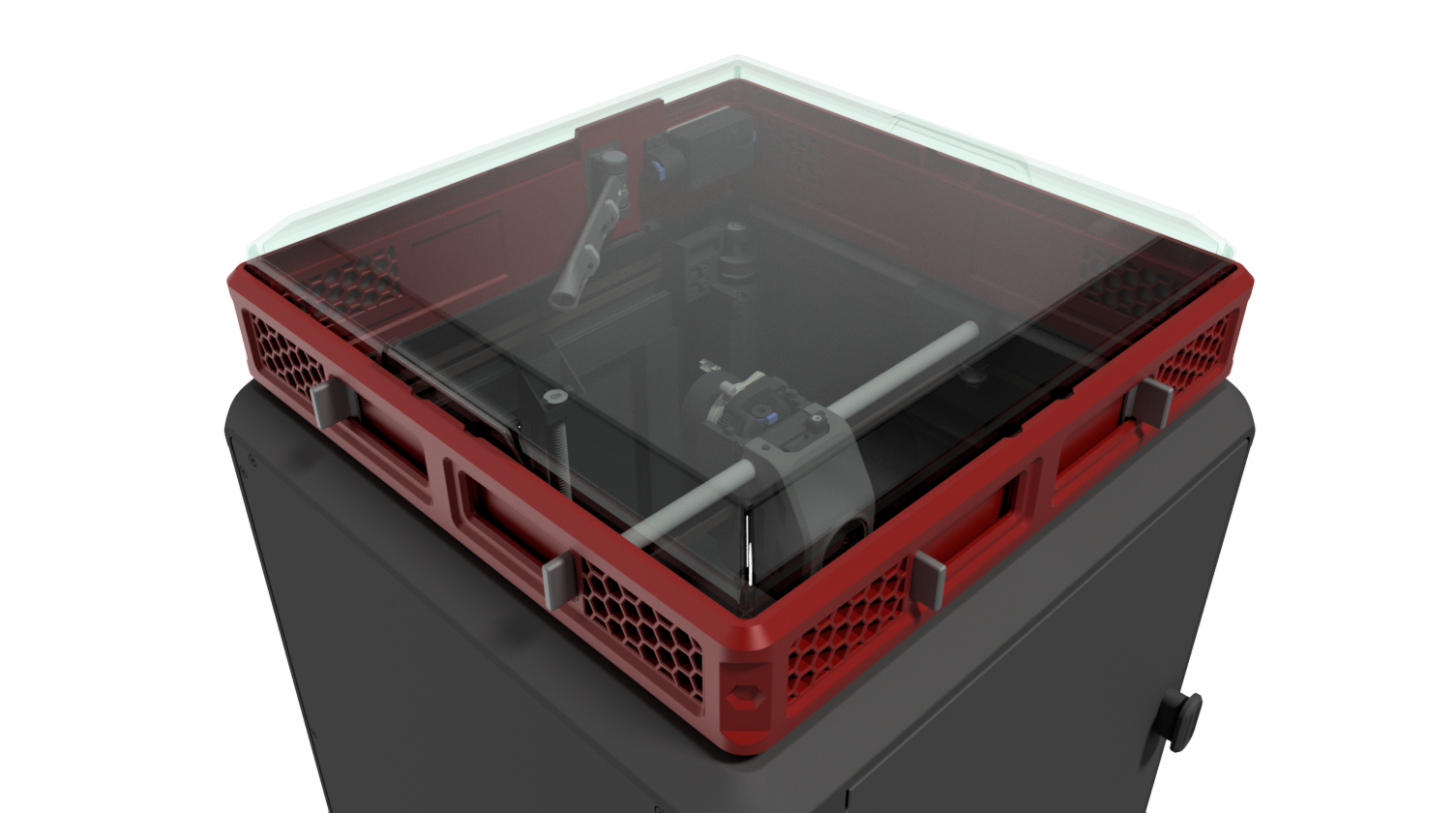

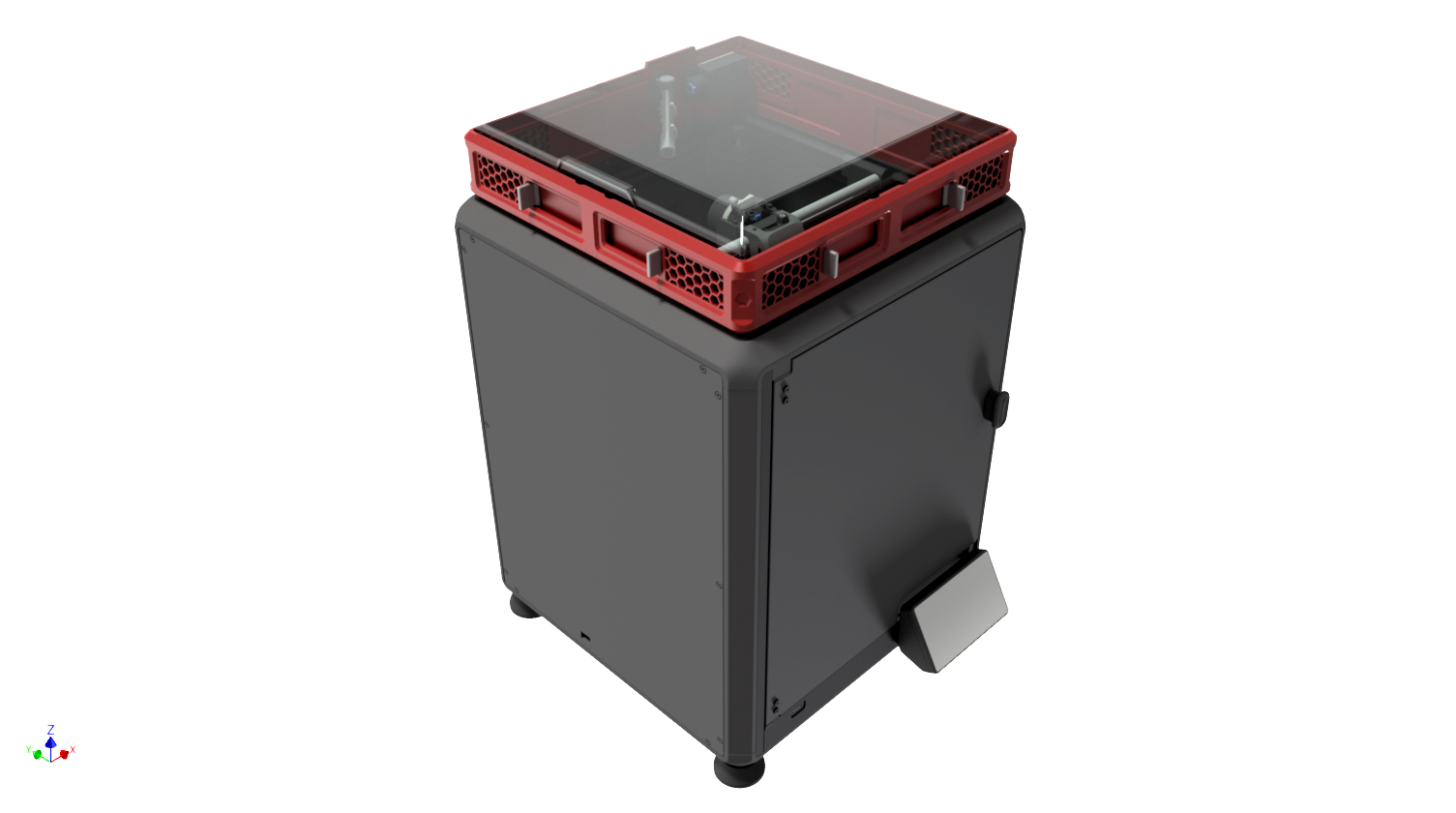

CREALITY K1 & K1C RAISER / TOP COVER / UPGRADE (VERSION 2)
Introducing the ultimate lid extension (Raiser) for your Creality K1 & K1C 3D printer, now with swing-arm design – no supports needed!

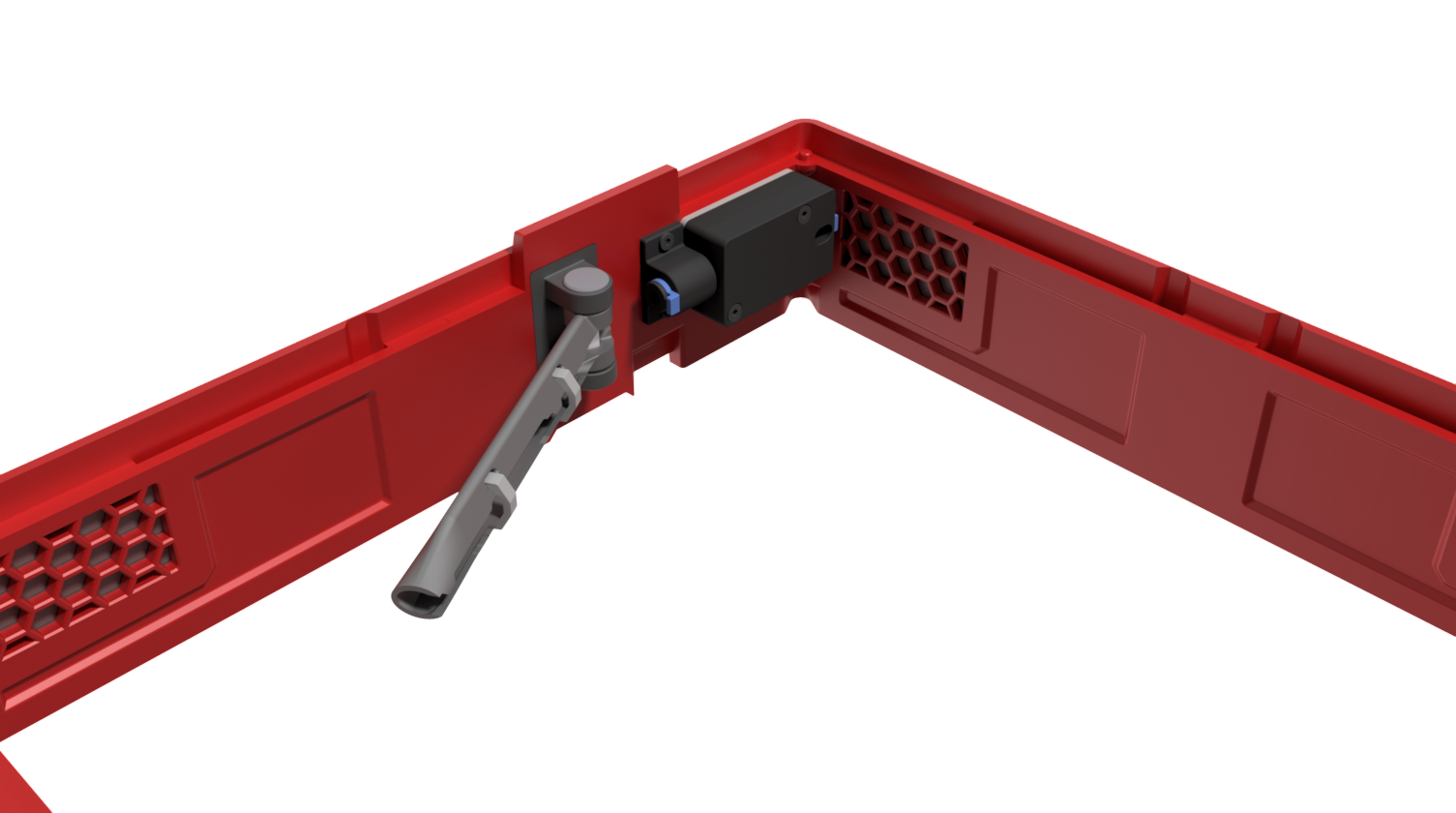

Get ready for a game-changer: Our new lid extension for the Creality K1 & K1C 3D printer features an innovative SWING-ARM DESIGN. This upgrade offers unmatched convenience by improving the mobility of the filament tube and power cable, effectively preventing the irritating chain slapping against the printer. Take your printing experience to the next level with increased precision and ease.
GET STL-FILES ON CREALITY CLOUD

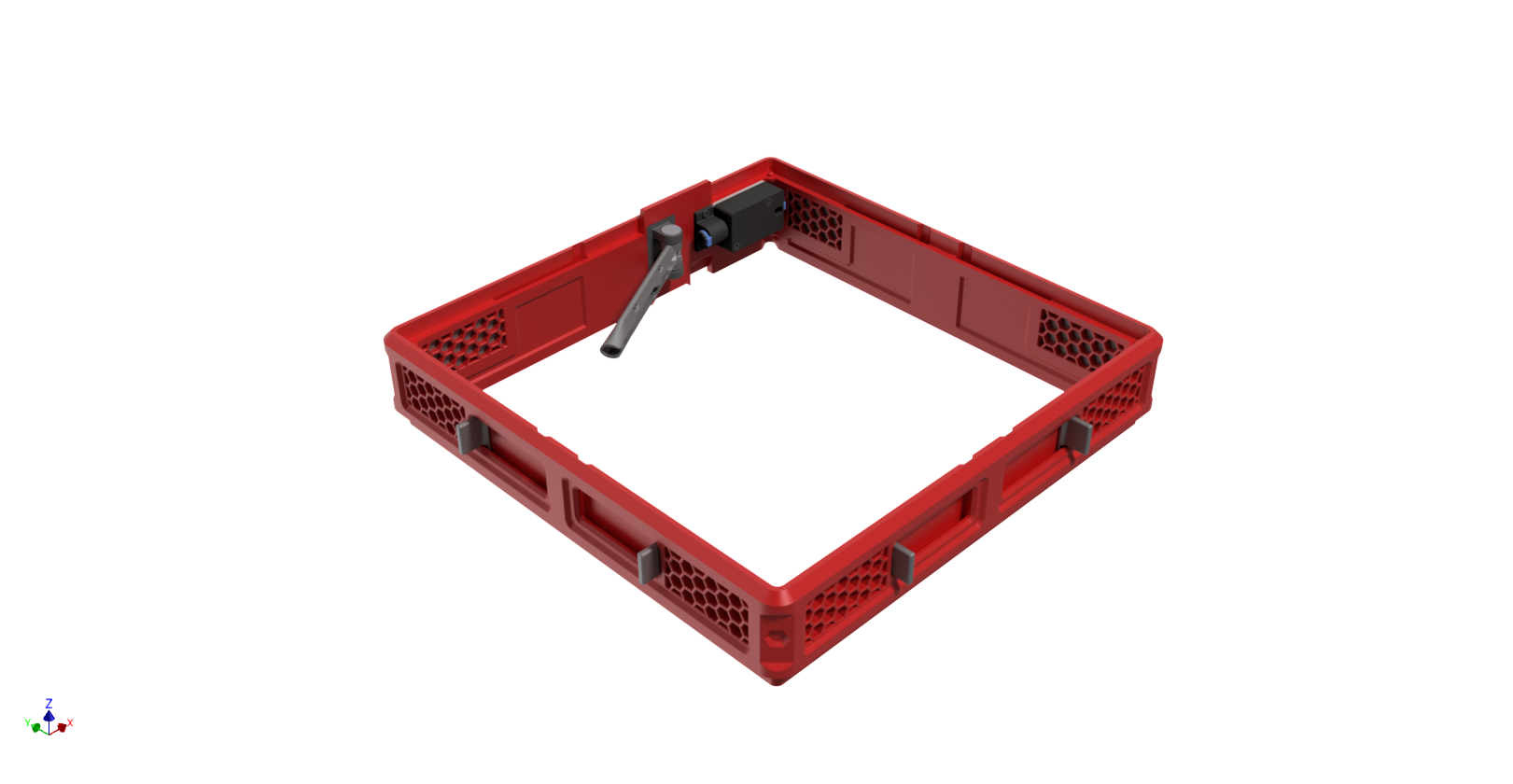

CREALITY K1 & K1C RAISER / TOP COVER (UPGRADE) - VERSION 2 (WITH SWING-ARM)
OUR STL-FILES OFFERS YOU:
- Perfect Fit on Creality K1 & K1C
- Enhanced Functionality
- Improved Print Quality

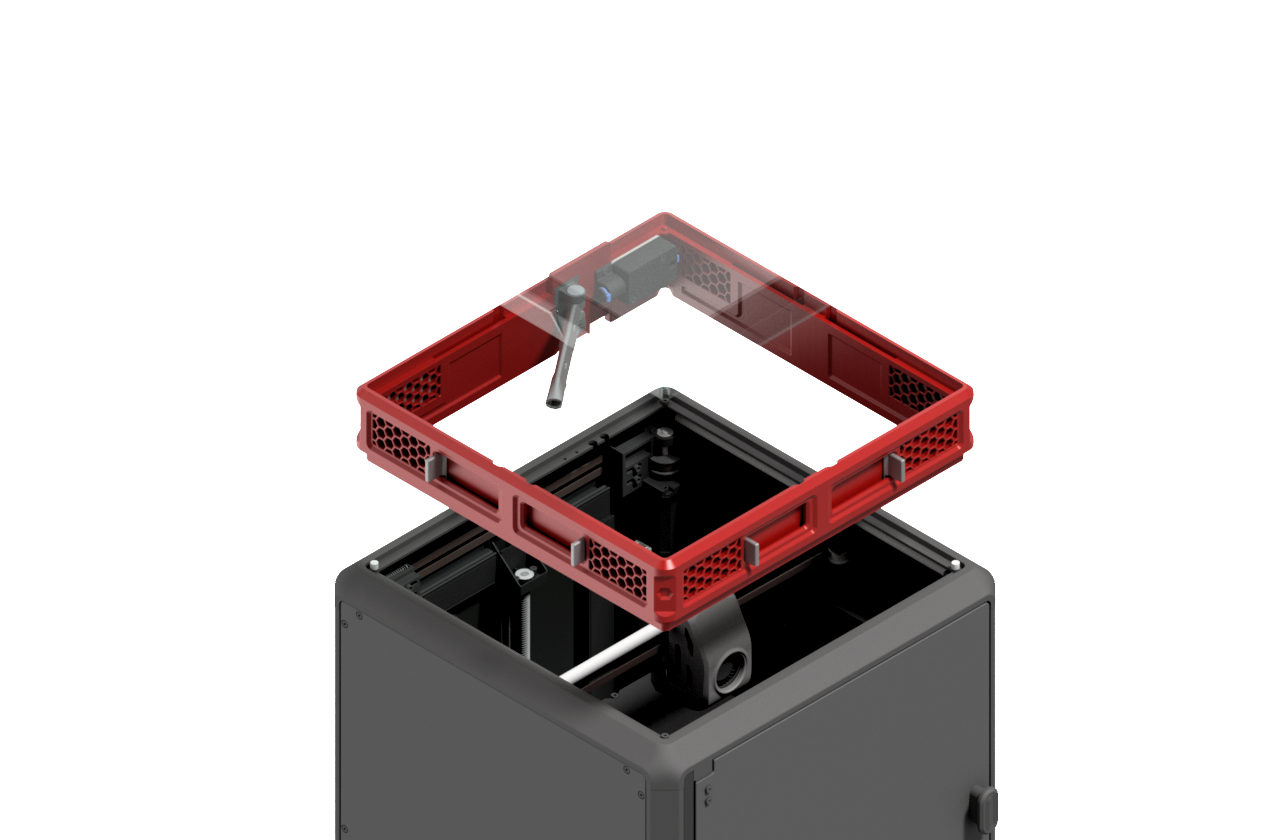

- Easy Installation
- Noise reduction
- More moving space for the Bowden tube
- Air supply regulation & indirect control of the temperature
- Bowden tube passage to the back and side (you can choose)
- Detailed assembly instructions are supplied as a download
- Detailed print settings are supplied as a download
- More mobility of the filament tube and the power cable (no annoying slapping of the chain against the printer)
- Side filament outlet
- Filament sensor is located inside the raiser

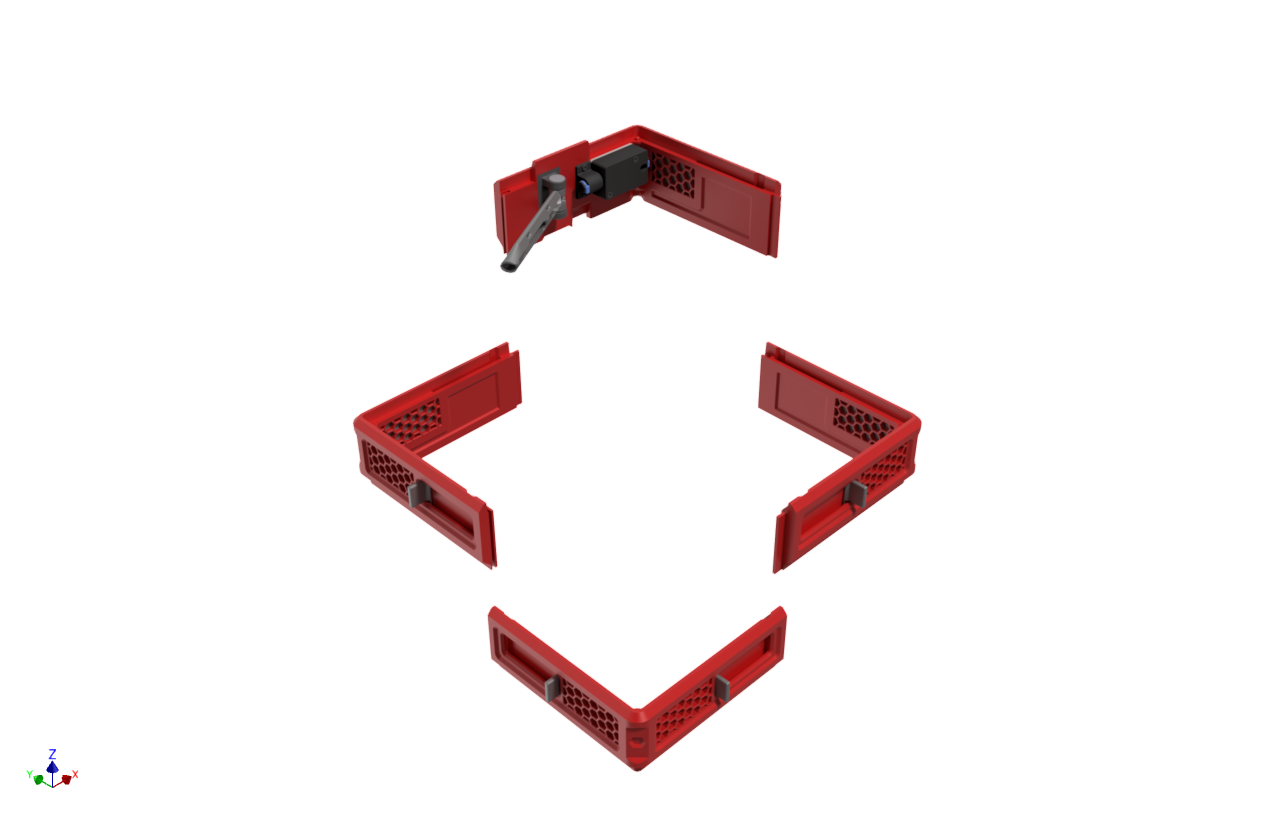

THE FOLLOWING PARTS MUST BE PRINTED:

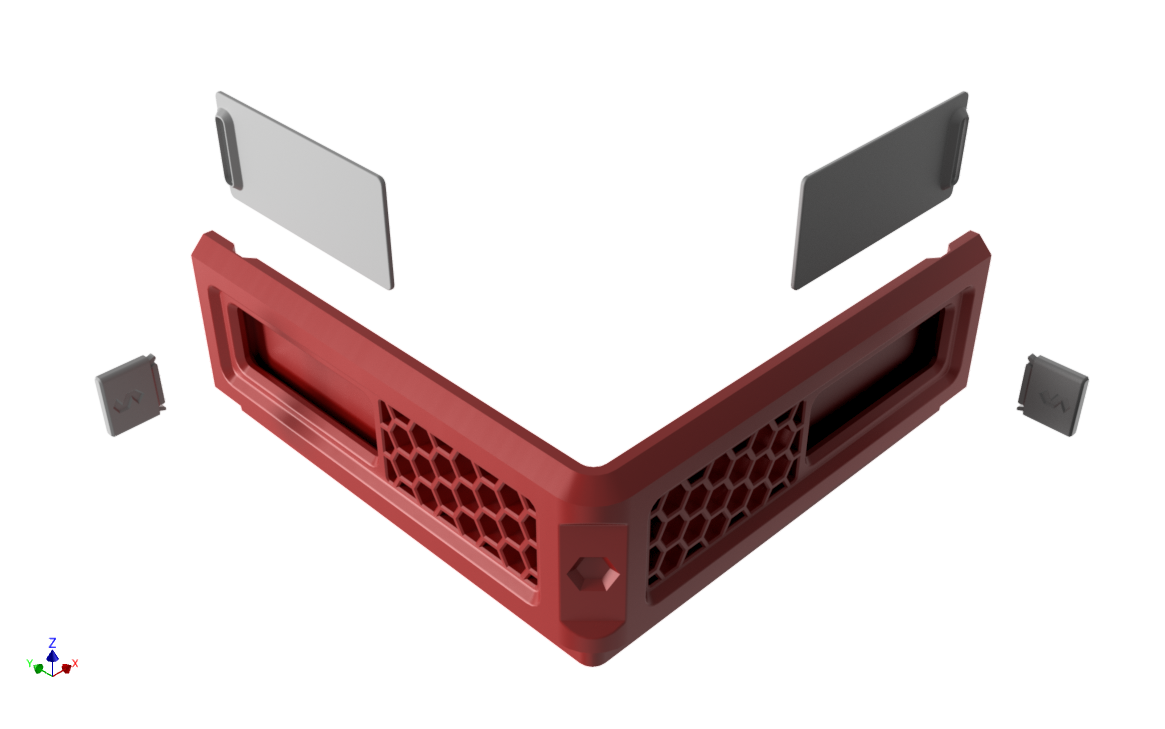

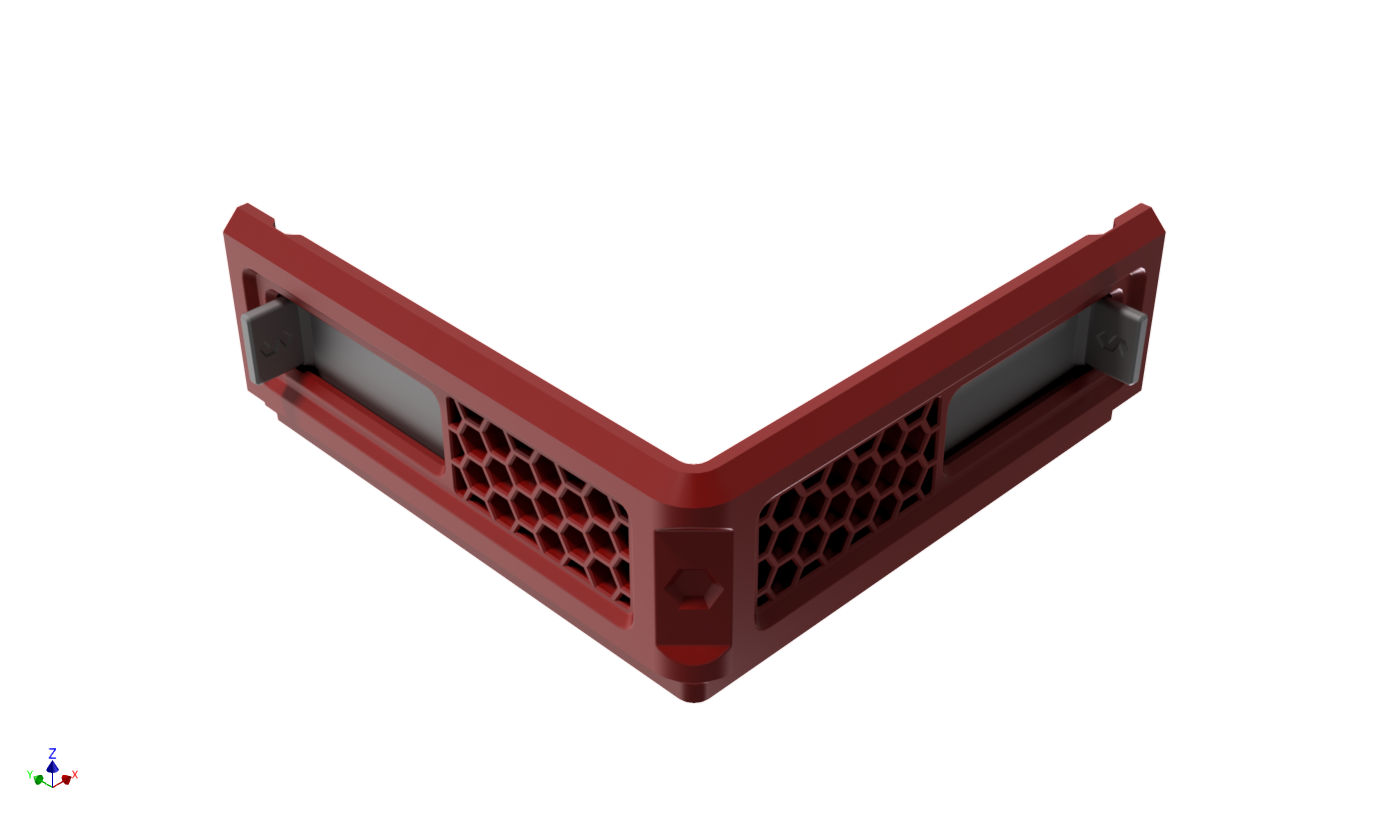

- PART_RAISER_K1 (3 TIMES)

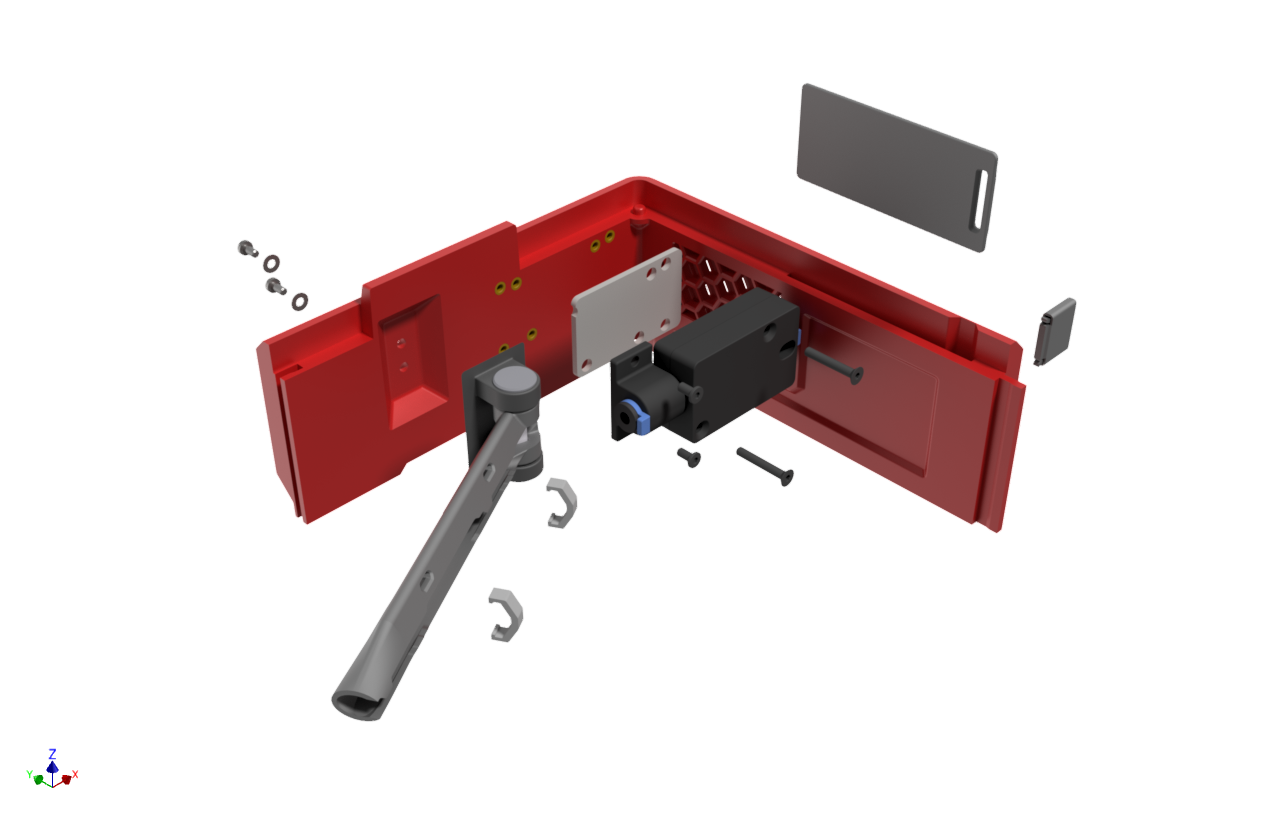

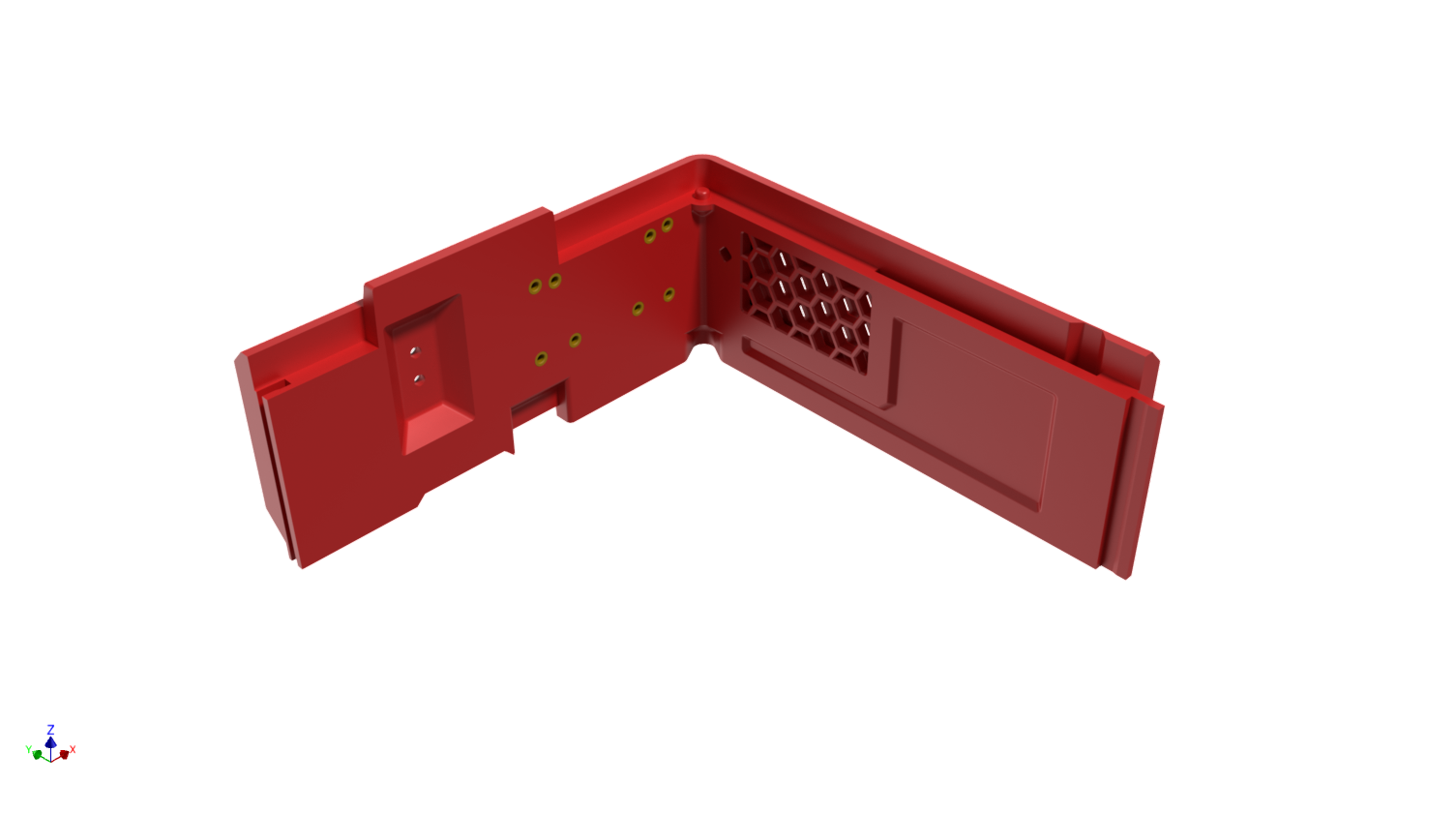

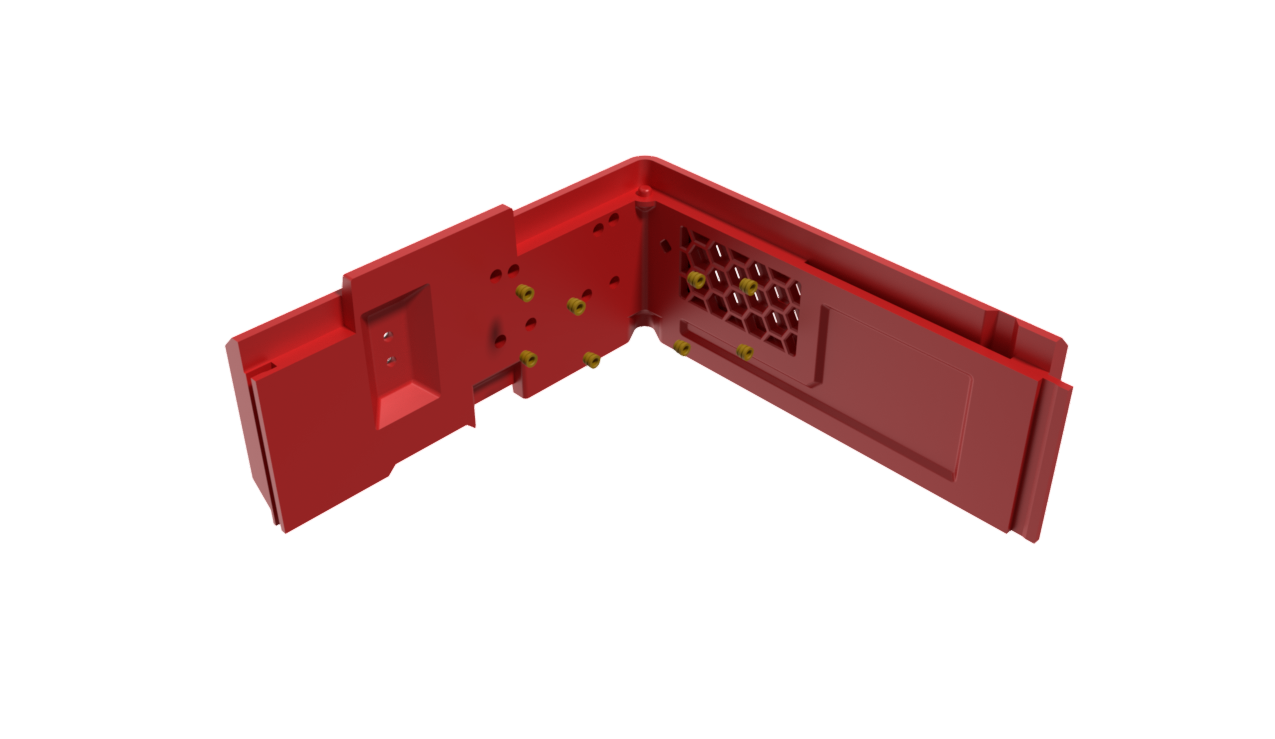

- PART_BACK-RIGHT_RAISER_SWING-ARM_K1 (1 TIME)

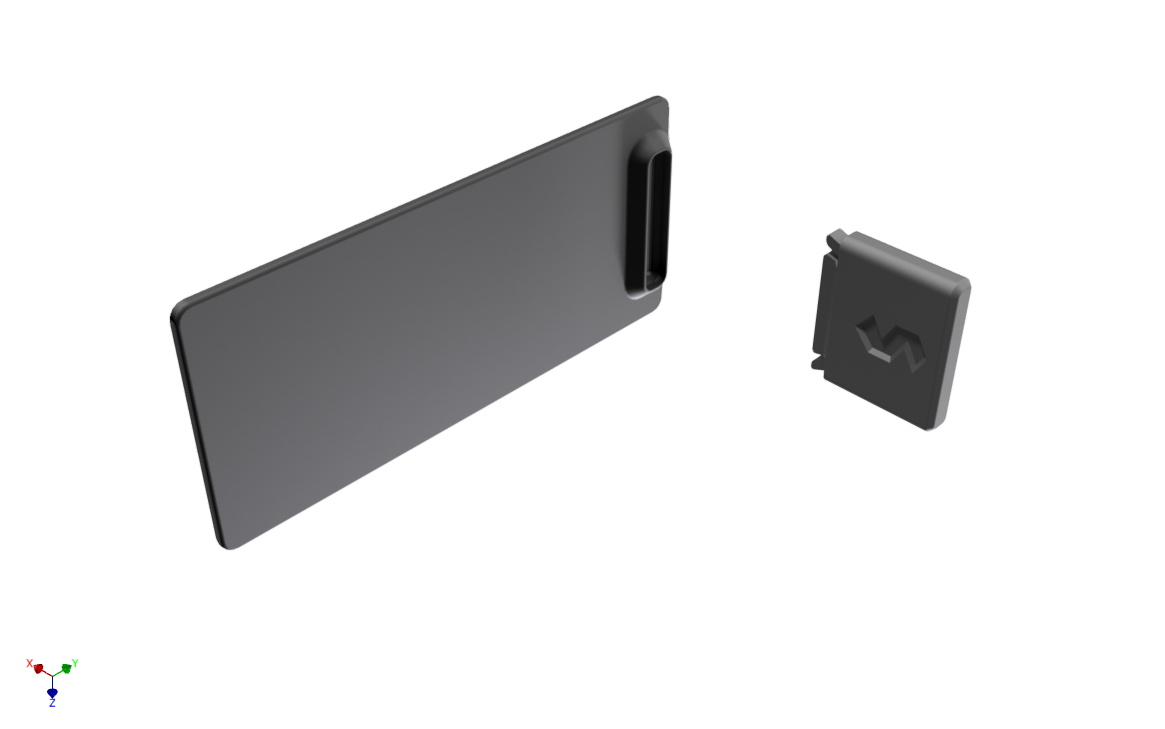

- SLIDER (8 TIMES)
- CONTROLLER_WITH_LOGO (8 TIMES) or CONTROLLER_WITHOUT_LOGO (8 TIMES)

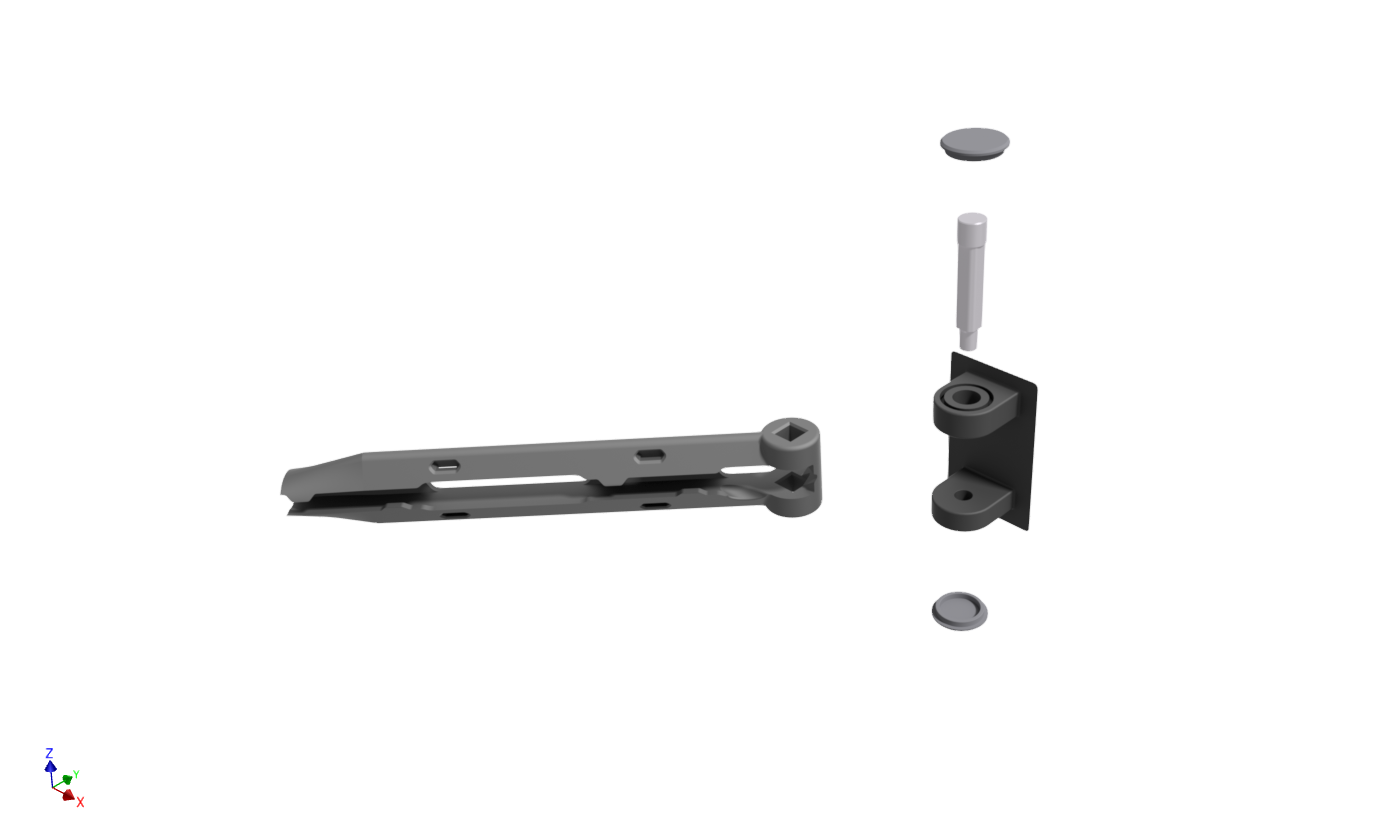

- DRIVE-SHAFT (1 TIMES)
- HOLDER_SWING-ARM (1 TIMES)
- SWING-ARM (1 TIMES)
- WASHER_FILAMENT-SENSOR (1 TIMES)
- CABLE_CLIP (3-5 TIMES)
- BEARING-COVER_TOP (3-5 TIMES)
- BEARING-COVER_BOTTOM (3-5 TIMES)
- SWING-ARM_CLIP (2 TIMES)
| Printing material | PLA / PLA+ / PETG / ABS / ASA (heat-resistant filaments are recommended, but not absolutely necessary) |
|---|---|
| Nozzle | 0,4 mm |
| Infill | 15% |
| Layer height | 0,2 mm |
| Walls | 2 |
| Support structure | none support needed (we have modeled the supports for you in the model, these must be removed with a click after printing) |
| Recommendation | BRIM with 5 lines, 100mm/s print speed (Attention! CONTROLLER with minimum 8 lines) |
